A photo-verified rooftop asset register designed for owners, property managers, plant managers, and maintenance teams who need a clear record of what is on the roof, what condition it appears to be in, and what should be prioritized for budgeting, service, and replacement planning.
A concise decision page that turns rooftop equipment into a usable asset record, not a pile of photos.
Risk considers both observed condition and operational consequence. An asset can appear physically fair while still ranking high if failure would disrupt operations.
Each asset is assigned a simple ID so staff, vendors, and management can discuss the same equipment without confusion.
The core deliverable: a practical equipment catalogue with manufacturer, model, serial, condition, and risk ranking. Unknown or inaccessible data is clearly marked rather than guessed.
| Asset ID | Type | Manufacturer | Model | Serial | Est. Age | Condition | Risk | Observed note | Suggested next step |
|---|---|---|---|---|---|---|---|---|---|
| RTU-1 | Rooftop Unit | Carrier | 48TC-D14 | 2816X03872 | 9 yrs | Fair | Medium | Exterior cabinet serviceable; belt wear visible. | Replace belt at next service; monitor corrosion. |
| RTU-2 | Rooftop Unit | Lennox | LCH180H | Not visible | 18 yrs | Poor | High | Older unit; weathering and prior service tags observed. | HVAC contractor review; plan replacement window. |
| EF-1 | Exhaust Fan | Greenheck | CUBE-180 | GKH-11802 | 7 yrs | Good | Low | Housing appears stable; bird screen missing. | Install screen; include in annual review. |
| Drain-1 | Roof Drain | Unknown | N/A | N/A | Unknown | Fair | Medium | Debris and localized ponding observed. | Clear drain and inspect after rainfall. |
| FL-1 | Flashing / Sealant | N/A | N/A | N/A | Unknown | Poor | High | Sealant separation at penetration. | Reseal; review for water entry. |

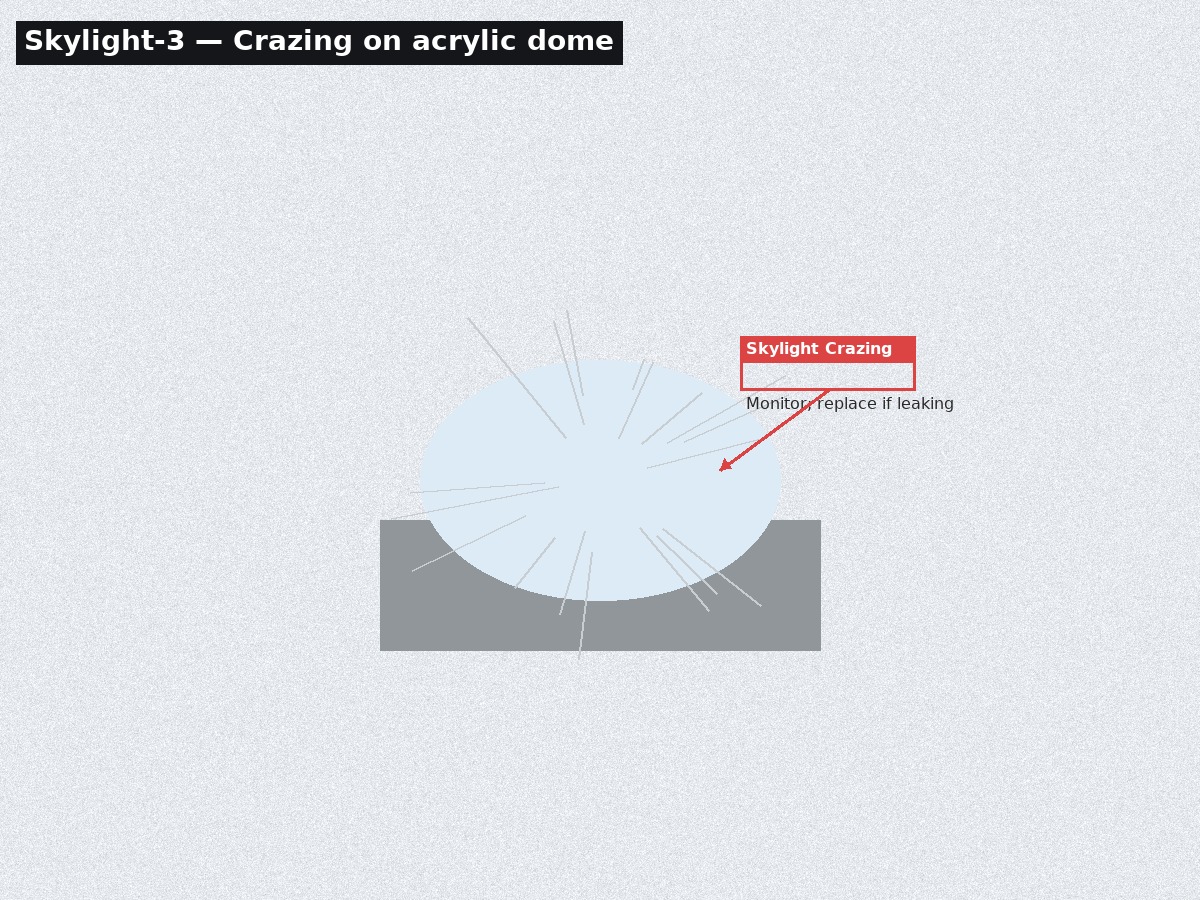

| SK-3 | Skylight | Bristolite | Not visible | Not visible | Unknown | Good | Low | Dome appears intact; minor surface crazing. | Monitor annually. |
Instead of relying on low-quality sample photos, this public sample uses clean evidence cards. In a real client report, each card is replaced with the client's own high-resolution roof photos, nameplate photos, and condition close-ups.

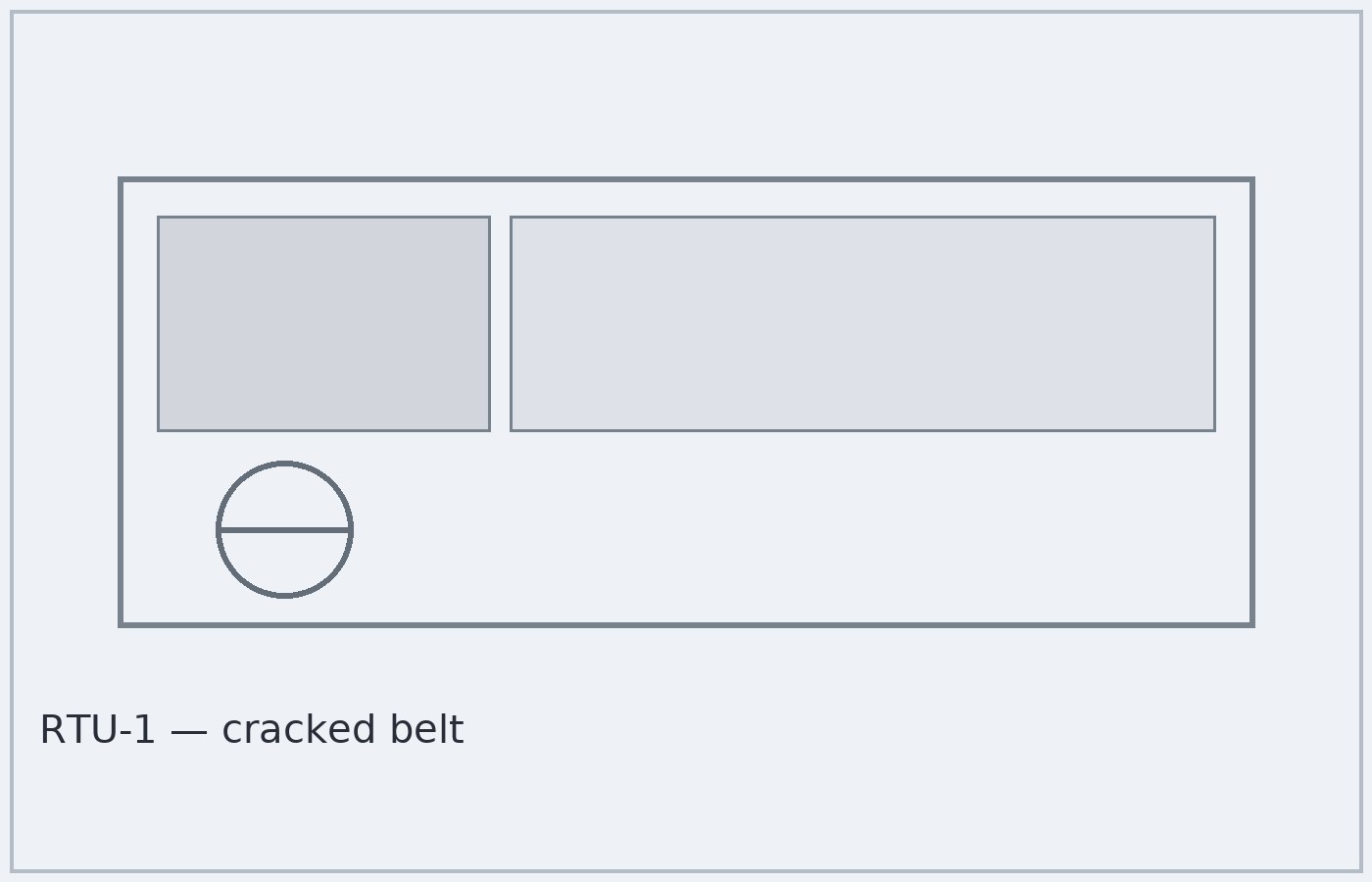

Condition: Fair
Exterior cabinet appears serviceable. Belt wear noted from accessible visual review.
Manufacturer, model, serial, unit location, estimated age, condition rating, and suggested follow-up.
Purpose: Asset record
Model and serial information is captured where visible so the report becomes useful for future service calls.
Use this record when requesting vendor quotes or confirming replacement options.

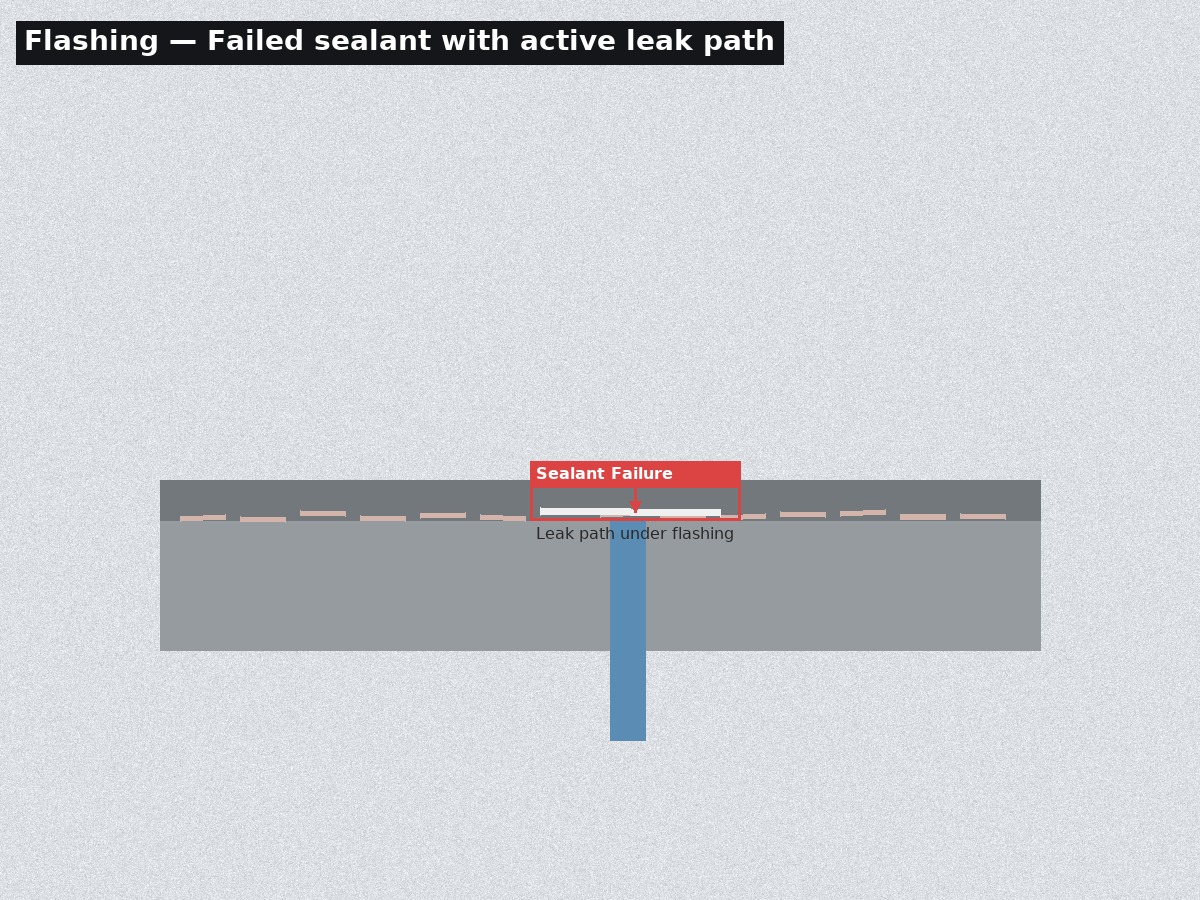

Condition: Poor
Sealant separation observed at penetration flashing. Potential water-entry point.
Reseal and review adjacent roof area.

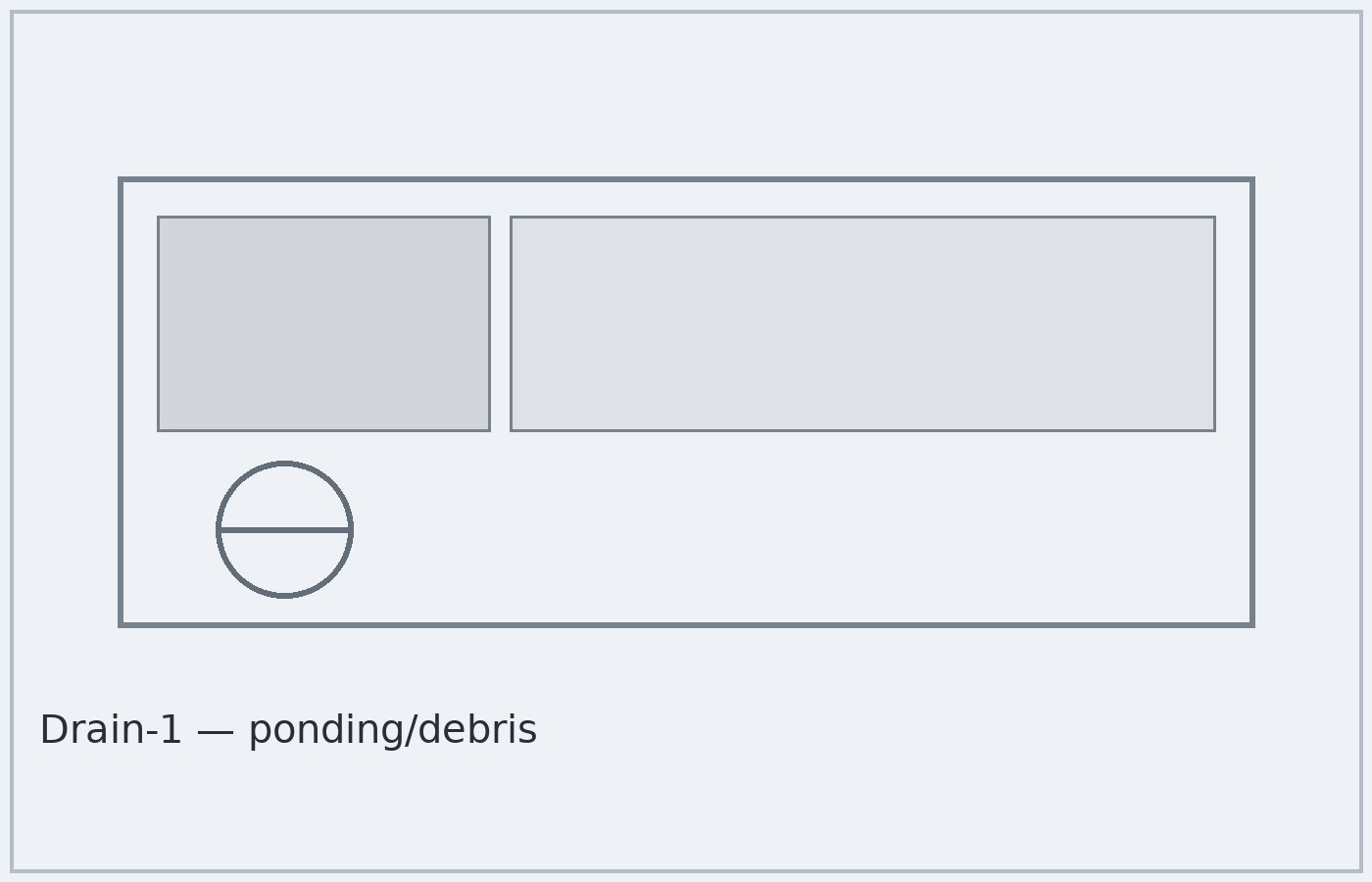

Condition: Fair
Debris accumulation and localized ponding observed around roof drain.
Clear drain and verify drainage after rainfall.
Condition: Good
Exhaust fan housing appears stable. Missing bird screen noted for follow-up.
Install screen to reduce debris and pest entry.

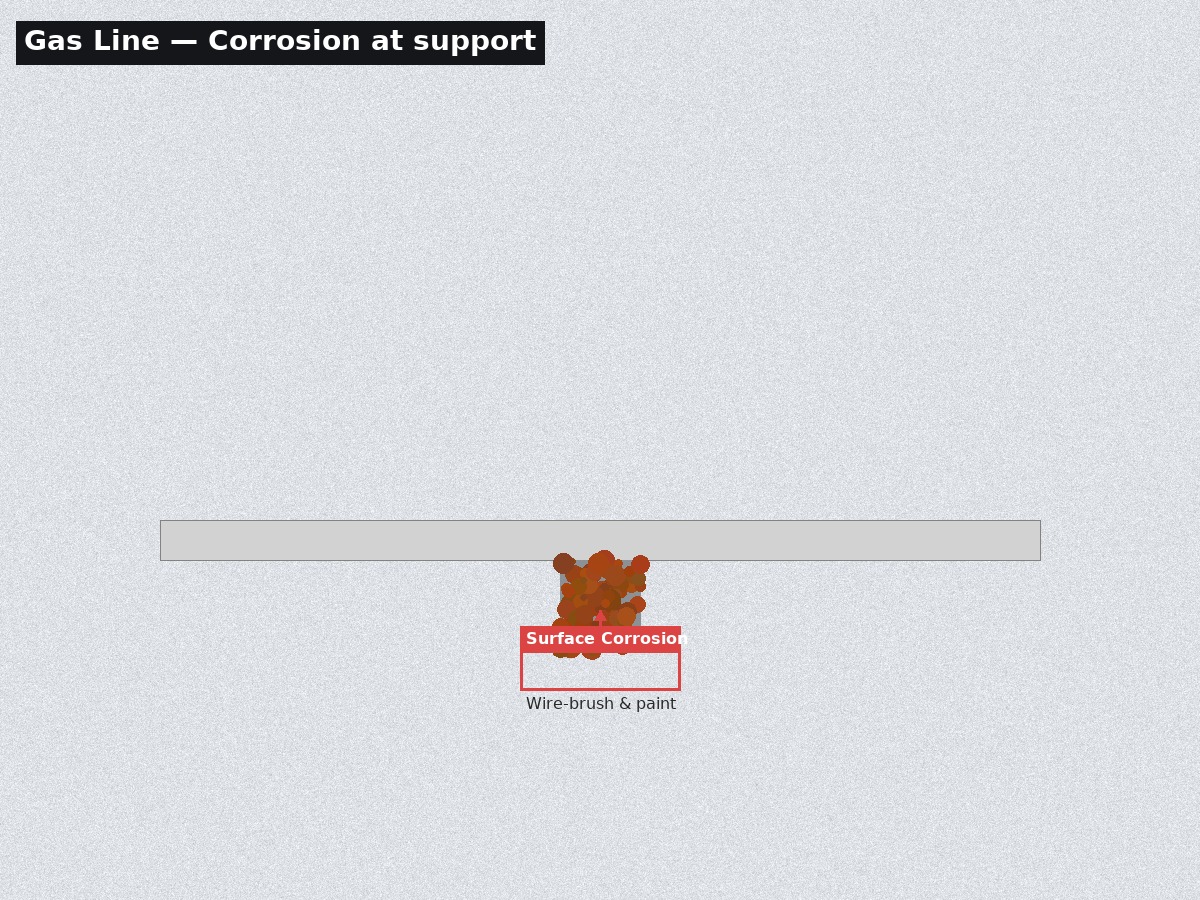

Condition: Fair
Surface corrosion visible near support location.
Prep and paint; verify support condition.
This is a visual, non-invasive rooftop asset overview.
It is intended for asset cataloging, photo documentation, budget planning, and maintenance prioritization. It is not a performance guarantee, full mechanical inspection, engineering certification, or substitute for licensed trade diagnostics.
Equipment may appear to be in good condition based on exterior observations while still requiring normal service, maintenance, or contractor review.
The same field documentation can support several practical decisions: inventory cleanup, replacement planning, property management communication, and capital budgeting.
Confirm what rooftop equipment exists, where it is located, and what model/serial information is visible.
Use exterior observations and photo documentation to flag aging rooftop units and near-term concerns.
Support replacement timing and budget conversations before rooftop units fail unexpectedly.
Turn equipment records and priority levels into a clearer multi-year planning discussion.
Give owners, tenants, vendors, and internal teams a shared reference point.
Document observed condition and practical priorities across rooftop mechanical assets.
This report establishes a baseline. Future reviews can update condition changes, confirm replacements, track recurring issues, and help management compare rooftop risk year-over-year.
